Zhejiang Sayeah Machinery Co., Ltd. is one of the leading manufacturers and suppliers of plastic three-station thermoforming machine in China. Welcome to buy the newest plastic three-station thermoforming machine made in China here from our factory. All customized machines are with high quality and competitive price.
600/400 and Smart end-packing line packing system
Sheet Loading and Feeding station: driving by motor. sheet roll Max diameter 1M. with dust-free plate to keep the sheet clean.
Touch Screen
The touch screen is easy to operate, all-electric adjustments can be done on the touch screen.

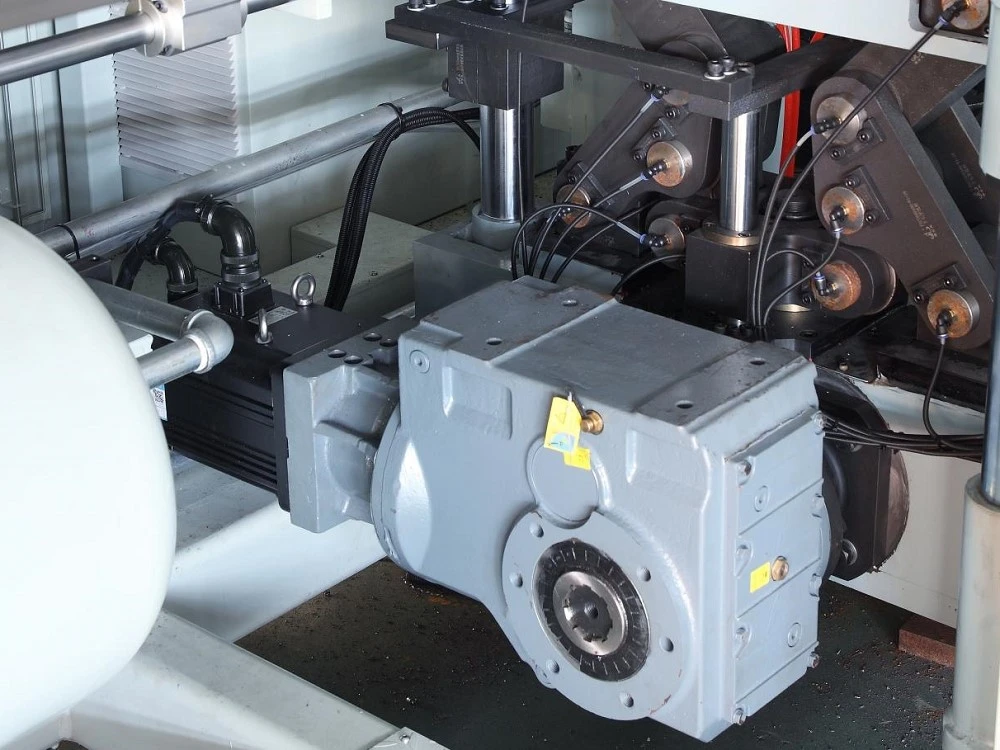

All lower mold movable guides are driven by servo motors, which are energy-saving, efficient and accurate.
The machine is equipped with automatic waste edge winding device, which is reasonable in layout, solid and durable.

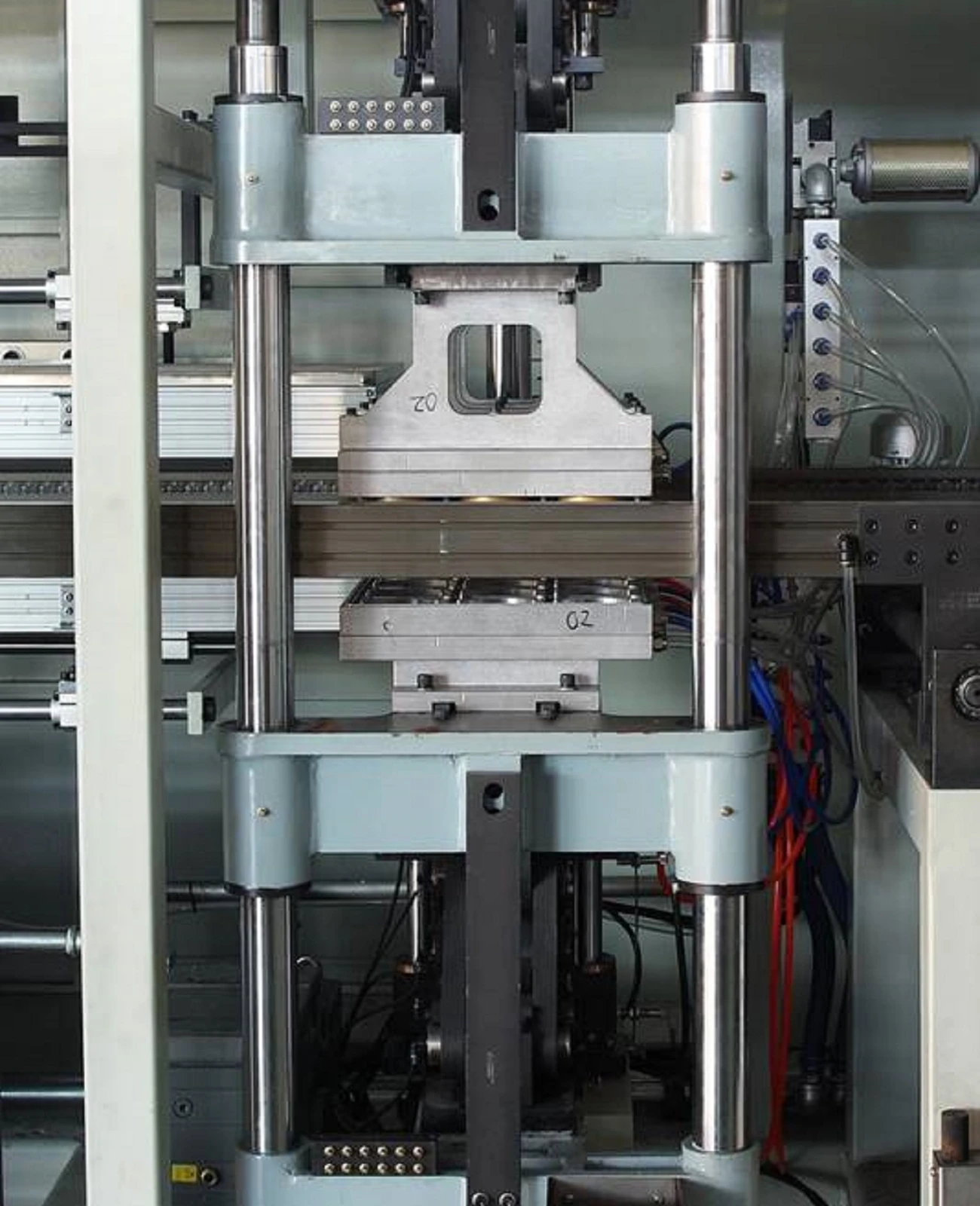

Forming Station
The upper and lower mold guides can move up and down to produce various convex and concave products to meet various production needs.
Punching and Cutting Station
Quick front mold change, safe and simple die change, reducing machine downtime.

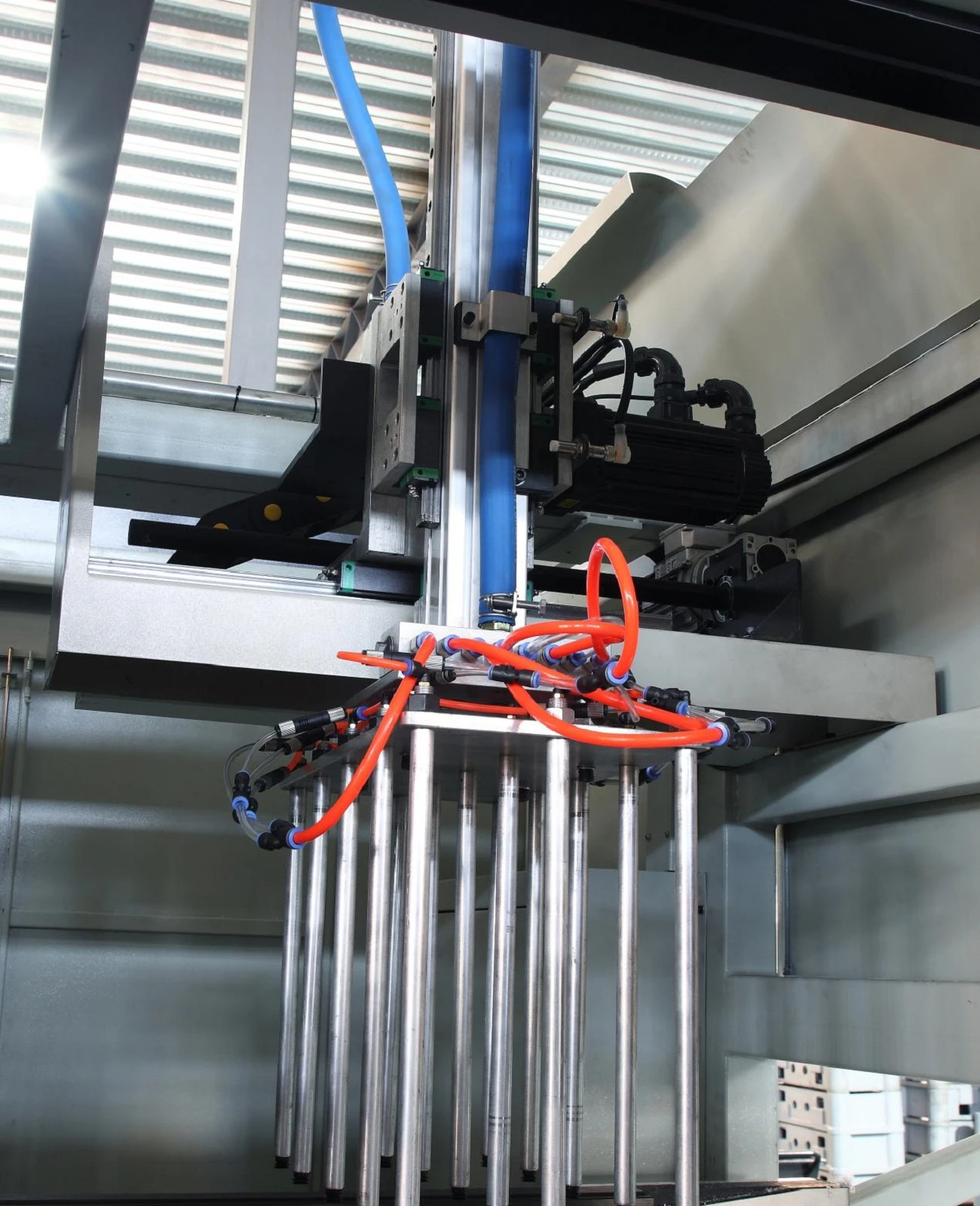

Stacking Station
Various materials can be used, such as PP, PS, PET, PVC, etc., as well as environmental friendly material PLA.
Usage: This Plastic 3/4 station Themoforming machine series is mainly used to produce various types of plastic square boxes, lunch boxes, cup lids, seedling trays, seedling pots, pallets, egg cartons and other plastic packaging products.
Features
- European design, suitable for diversified production lines, safe, efficient energy-saving and hygienic.
- Compact structure, stable and efficient operation, easy for daily operation and maintenance.
- Unwinding station electric lifting, double roll holder. allow for single operator loading rolls up to 1T.
- Fast and accurate temperature control system (error 1 degree), which can reach the set temperature in ten minutes.
- Various materials can be used, which is suitable for all kinds of small and medium-sized batch orders.
- Quick front mold change, safe and simple die change, reducing machine downtime.
- Materials with strong shrinkage can adopt the single station die forming and punching function to ensure the dieedge cutting accuracy.
- High cost performance, low failure rate, abnormal alarm response mode, reducing the time cost of troubleshooting.
- Remote maintenance, instant judgment of obstacle messages, rapid correction and repair of problems.
- Integrated design of electric cabinet to simplify machine assembly and wiring installation process.
Main Technical Parameters
|
Model |
FSCT600/400-2 |
FSCT600/400-3 |
FSCT600/400-4 |
|
Max.Forming Area |
600*400mm |
||
|
Qty of Stations |
2 |
3 |
4 |
|
Max.Forming Depth |
80/40mm |
||
|
Max.Sheet Width |
640mm |
||
|
Max.Sheet Roll Dia. |
1100mm |
||
|
Sheet Specification |
0.15-2mm |
||
|
Max.Dry Cycle Speed |
35Cycle/min |
||
|
Overall Power |
85KW |
90KW |
95KW |
|
Dimension |
7600*2100**2600mm |
8200*2100**2600mm |
9000*2100**2600mm |
|
Weight |
4T |
5.5T |
7T |
Our Service
Thermoforming machine and supporting equipment, Provide one-stop solutions for Plastic 3/4 station Themoforming machine, process and technology.
We provide more precisely and efficiently demand communication, cost accounting, layout designing.
We have professional QC team to ensure machine testing and sample proofing.
Make the 100% inspection before the shipments.
Have the random inspection during the processing. And help customer to install the machine and debugging.
Provides one year service for machine warranty, lifelong after-sales service. Installation and commissioning, free spare parts etc.
Our Advantage
We have been engaged Plastic 3/4 station Themoforming machine for more than 25 years.
We have complete production technology and management.
As a manufacturer our price is also good.
FAQ
Q:Can your 600/400 Plastic 3/4 station Themoforming machine be customized?
A:Of course, our machines can be customized according to the needs of the customers.
Q:What is the forming area of your machine?
A:The forming area of the 600/400 Plastic 3/4 station Themoforming machine is 600*400mm
Q:What is the no-load speed of this machine?
A:The no-load speed of the 600/400 Plastic 3/4 station Themoforming machine is 35 per minute
Q:What is your payment?
A:T/T or L/C
Q: What is your term of payment?
A: 30% as down payment by T/T; 70% by T/T before delivery and after inspection
