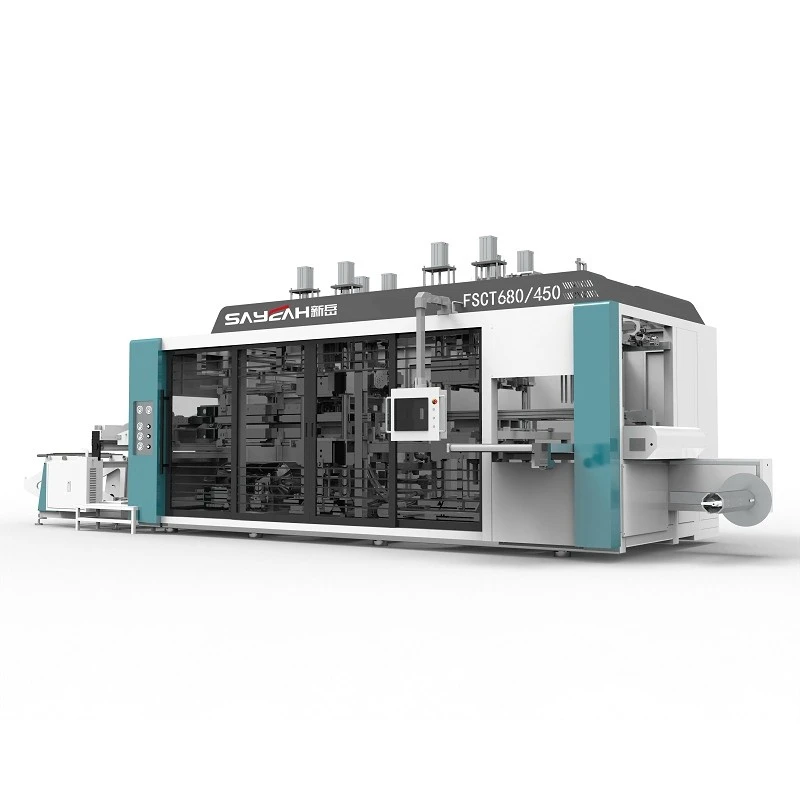

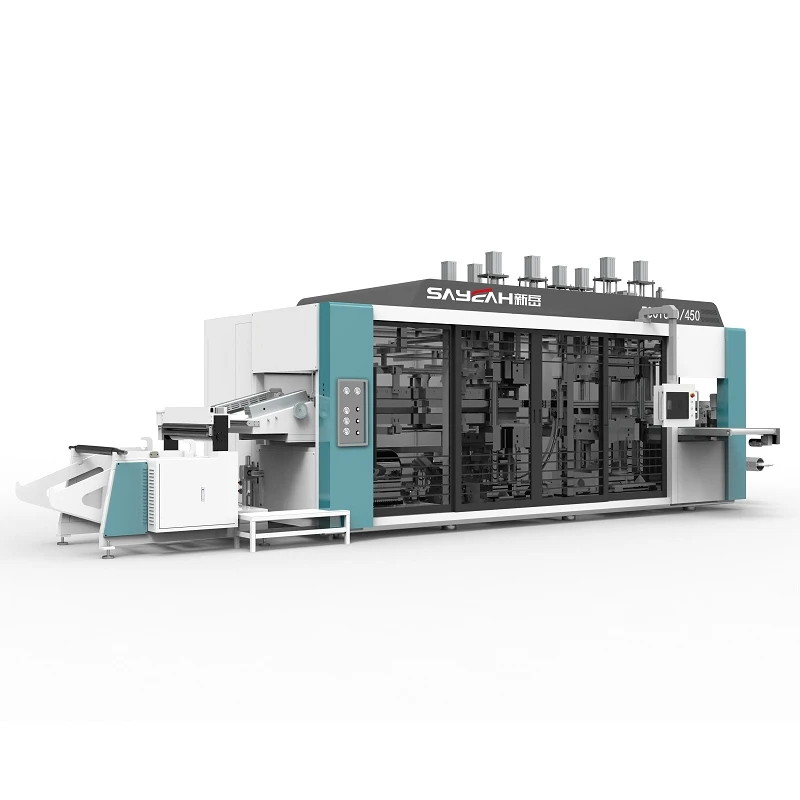

4 Station Thermoforming Machine

Zhejiang Sayeah Machinery Co., Ltd. is one of the leading manufacturers and suppliers of 4 station thermoforming machine in China. Welcome to buy the newest 4 station thermoforming machine made in China here from our factory. All customized machines are with high quality and competitive price.





Sheet Loading& Feeding Station Driving by motor. Max diameter 1M. with dust plate to make the clean sheet.

Has the In-feed sheet edge pre-heater system before the sheet goes into the heater part, it reduces the defective percentage, keep dust-free environment to improve the quality of the product and prolong the life of conveying chain.

The Chain

The plastic sheet was sent by the sharp tooth, which was driven by the servo-motor. The width of the chain can be adjusted and wear cooling water, which can prolong the life of the chain and reduce the dust.

Ceramic Heater

Temperature is controlled precisely (the difference is within ±1℃). The working life of the ceramic heater is long and adopts the fully enclosed oven. The temperature controlling system is better and saves more energy..

Forming Station

Driven by servo motor to close the mold, with cylinder clamping frame and servo stretching function at the same time.

The vacuum pump is from German BECKER to meet all kinds of requirements for different products.

In addition, it also has automatic lubricator pump to prolong the life of the machine.

Punching Station

Has an automatic mold fixing system, which can be fixed after the installation and adjustment. Don't need screws to fix the mold and can short the setting time of the mold. It can improve efficiency. And the cutter has heat functions.

Stacking Station

Stacking station has many options to design that can meet more demands of packing.

Usage: This series is mainly used to produce various types of plastic square boxes, lunch boxes, cup lids, seedling trays, seedling pots, pallets, egg cartons and other plastic packaging products.

1. European design, suitable for diversified production lines, safe, efficient energy-saving and hygienic
2. Compact structure, stable and efficient operation, easy for daily operation and maintenance
3. Unwinding station electric lifting, double roll holder. allow for single operator loading rolls up to 1T
4. Fast and accurate temperature control system (error 1 degree), which can reach the set temperature in ten minutes
5. Various materials can be used, which is suitable for all kinds of small and medium-sized batch orders
6. Quick front mold change, safe and simple die change, reducing machine downtime
7. Materials with strong shrinkage can adopt the single station die forming and punching function to ensure the dieedge cutting accuracy
8. High cost performance, low failure rate, abnormal alarm response mode, reducing the time cost of troubleshooting
9. Remote maintenance, instant judgment of obstacle messages, rapid correction and repair of problems
10. Integrated design of electric cabinet to simplify machine assembly and wiring installation process

Plastic Thermoforming Machine

A plastic thermoforming machine uses vacuum and pressure forming processes to thermoform heated plastic sheets into various final products. This machine is renowned for its high efficiency and stable performance and is widely used in the production of disposable packaging and food containers.
