Zhejiang Sayeah Machinery Co., Ltd. is one of the leading manufacturers and suppliers of automatic plastic glass making machine in China. Welcome to buy the newest automatic plastic glass making machine made in China here from our factory. All customized machines are with high quality and competitive price.
automatic plastic glass making machine

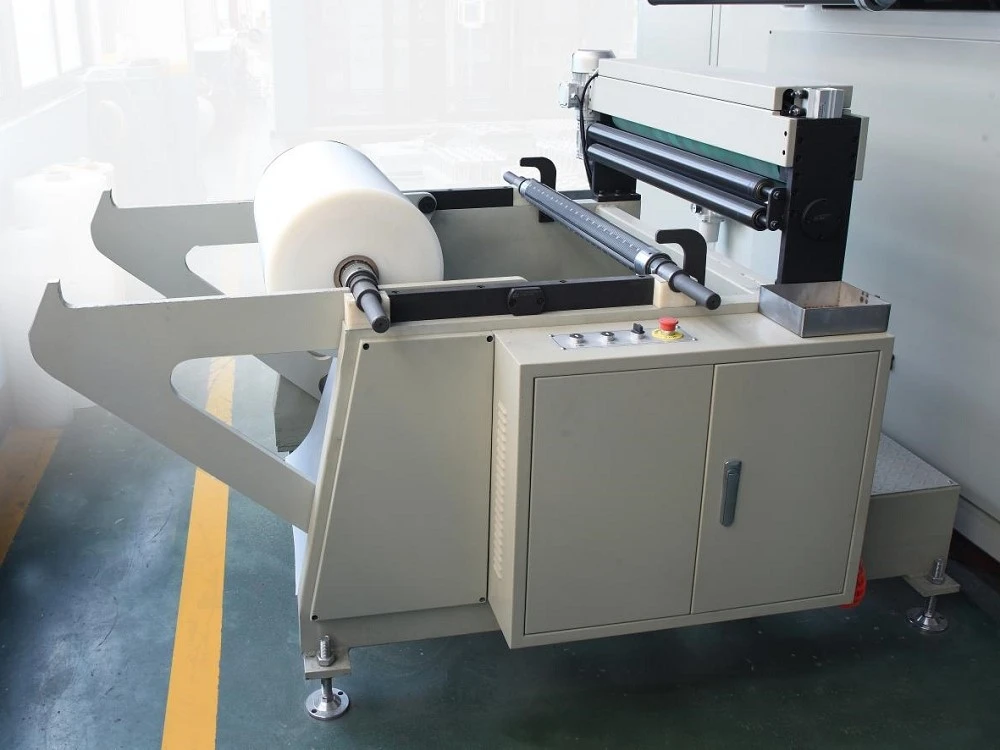

Unwinder
The unwinder was lifted by the electricity, and the sheet roll max load weight is 1T. It can put two rolls one time for easy replacement.

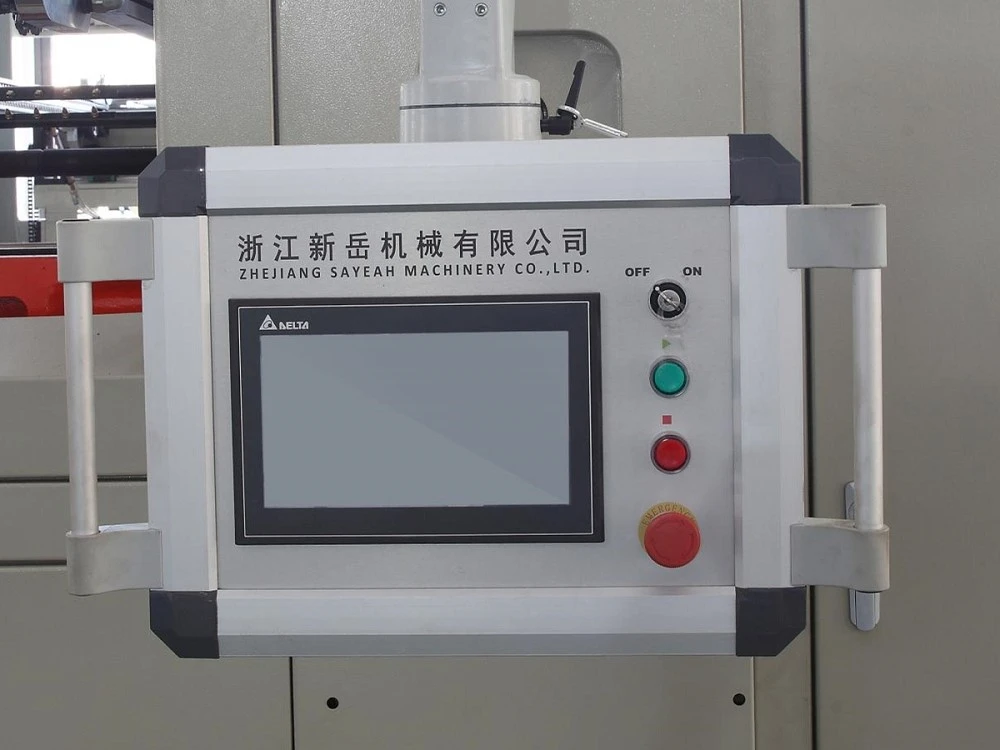

Touch Screen
Easy to operate, all-electric adjustments can be done on the touch screen.

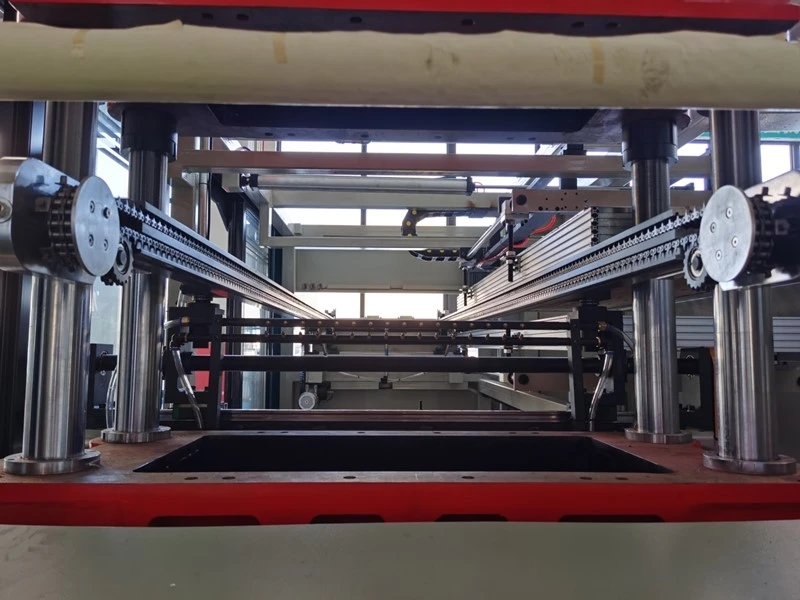

Chain
Aluminum alloy can make sure the cooling effect better. The width of the chain, forward or backward was adjusted by the motor.
Heater
It can adjust the temperature quickly and control the temperature precisely, which can save energy.
Guides:
It can option for hydraulic or servo motor-driven mode and has strong power. Four-pillar can sure the guides run smoothly. And the servo stretch will make the product more uniform and the mold forming more perfect. The automatic lubrication can prolong the life of the machine.
Electrical:
The layout of the electrical cabinet is reasonable, and it is easy to maintain. It can be upgraded and maintained remotely.

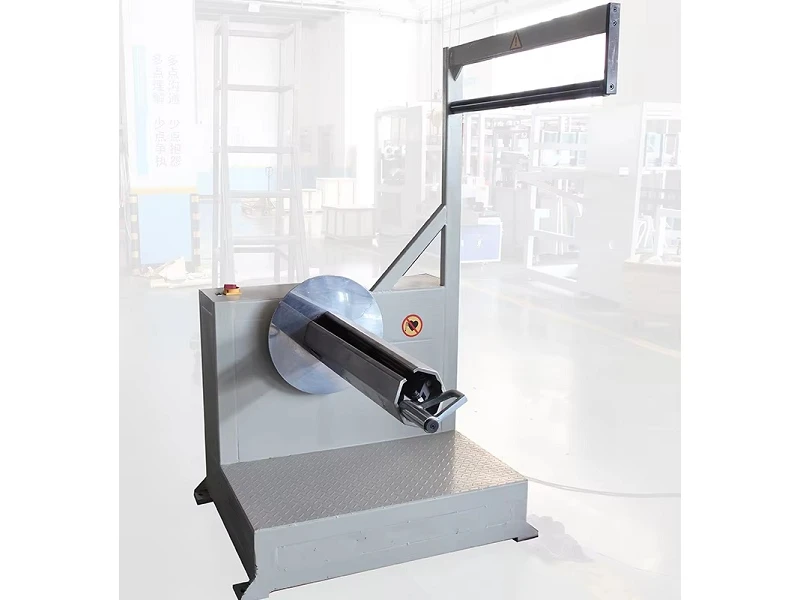

Winding:
It is solid and durable. The operation is easy.
Usage: This series mainly used for making different kinds of plastic flower pots, trays, plate, bowl, cups and other plastic packaging products.
Major Construction Features
- The operation of the machine is controlled by PLC and touch screen.
- The mold guide plate adopts four guide posts to ensure the mold clamping accuracy.
- The chain frame adopts fast cooling and wear-resistant design.
- The chain frame exits the safe mold change system, which can greatly reduce the difficulty of mold change.
- Heating in 5-6 sections of the heating furnace to ensure that the materials are fully heated in the heating furnace.
- The cup blowing system can adjust the cup blowing angle and air volume.

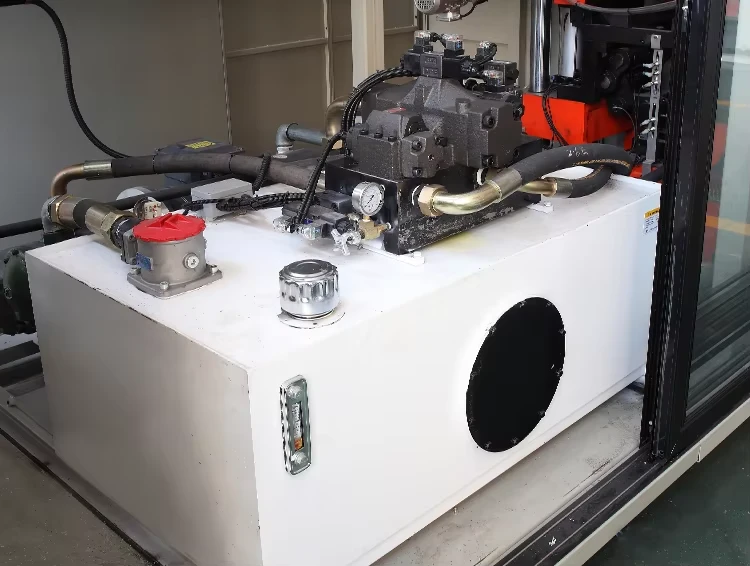

- Integrated design of hydraulic system to facilitate overhaul and maintenance.
- Servo stretching system, quality assurance, durable and not easy to break.
- Simple operation, reliable performance, low noise and high quality.
- Optimize the design of electric cabinet and simplify the machine assembly and wiring installation process.
Main Technical Parameters
|
Model |
SY-850B II |
SY-850B III |
|
Max.Forming Area |
850*550mm |
|
|
Max.No-Load Speed |
35Cycles/min |
40 Cycles/min |
|
Running Pattern |
Hydraulic |
Servomotor |
|
Feeding Driven |
Servomotor |
|
|
Stretching Pattern |
Servomotor |
|
|
Sheet Specification |
THK: 0.2-2mm, W: Max.870mm |
|
|
Max.Forming Depth,Sample Height |
≤140mm with robot , ≤160mm by blowing |
|
|
Max.Sheet Roll Dia. |
1100mm,1T |
|
|
Electrical Consumption |
66kw/h |
60 kw/h |
|
Overall Power |
215kw |
|
|
Dimension |
L4200*W1970*H3100 |
|
|
Weight |
6T |
|
Our Service
Thermoforming machine and supporting equipment, Provide one-stop solutions for automatic plastic glass making machine, process and technology.
We provide more precisely and efficiently demand communication, cost accounting, layout designing.
We have professional QC team to ensure machine testing and sample proofing.
Make the 100% inspection before the shipments.
Have the random inspection during the processing. And help customer to install the machine and debugging.
Provides one year service for machine warranty, lifelong after-sales service. Installation and commissioning, free spare parts etc.
Our Advantage
We have been engaged thermoforming for more than 25 years.
We have complete production technology and management.
As a manufacturer our price is also good.
FAQ
Q:Can your automatic plastic glass making machine be customized?
A:Of course, our machines can be customized according to the needs of the customers.
Q:What is the forming area of your machine?
A:The forming area of the automatic plastic glass making machine is 850*550mm
Q:What is the no-load speed of this machine?
A:The no-load speed of the automatic plastic glass making machine is 35 per minute
Q:What is your payment?
A:T/T or L/C
Q: What is your term of payment?
A: 30% as down payment by T/T; 70% by T/T before delivery and after inspection
